Plumbing · P-P4FV7

Pipe Penetration through Floor Slab

Materials

Elements

Stairs Floors / Slabs Insulation Roof / Floor Openings

About this detail

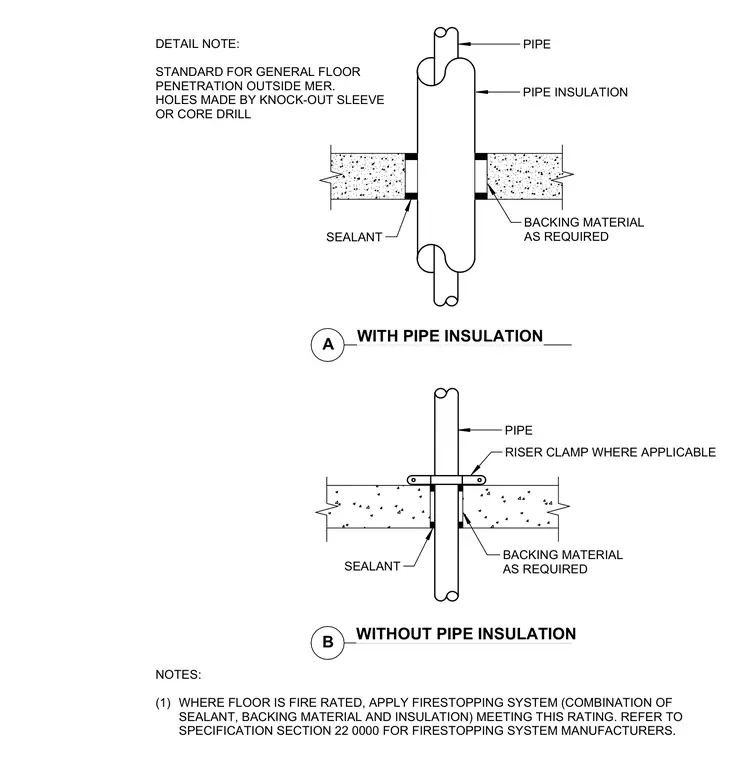

A vertical pipe passes through a core-drilled or knock-out sleeve hole in a concrete floor slab. The annular space is sealed with backing material and sealant at the top and bottom of the penetration. Where fire-rated assemblies occur, a firestopping system comprising sealant, backing material, and insulation is applied to meet the required rating. For uninsulated piping, a riser clamp rests on the top of the slab where applicable. Insulated piping maintains continuous insulation through the penetration assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
