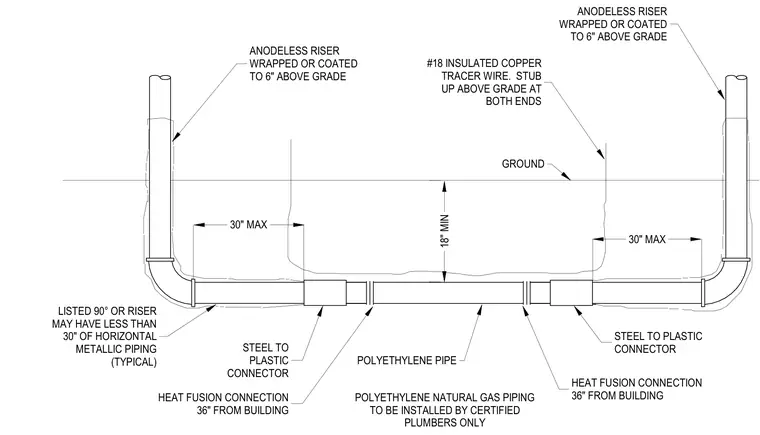

Anodless risers are wrapped or coated to six inches above grade and connect to polyethylene natural gas piping buried a minimum of 18 inches below the ground. Steel-to-plastic connectors join the metallic risers to the polyethylene pipe using heat fusion connections located 36 inches from the building. An 18 gauge insulated copper tracer wire is stubbed up above grade at both ends for detection. Listed 90 degree bends or risers may have less than 30 inches of horizontal metallic piping.
18" MIN 30" MAX 30" MAX GROUND STEEL TO PLASTIC CONNECTOR HEAT FUSION CONNECTION 36" FROM BUILDING LISTED 90° OR RISER MAY HAVE LESS THAN 30" OF HORIZONTAL METALLIC PIPING (TYPICAL) STEEL TO PLASTIC CONNECTOR HEAT FUSION CONNECTION 36" FROM BUILDING POLYETHYLENE PIPE ANODELESS RISER WRAPPED OR COATED TO 6" ABOVE GRADE #18 INSULATED COPPER TRACER WIRE. STUB UP ABOVE GRADE AT BOTH ENDS ANODELESS RISER WRAPPED OR COATED TO 6" ABOVE GRADE POLYETHYLENE NATURAL GAS PIPING TO BE INSTALLED BY CERTIFIED PLUMBERS ONLY
