Lane Open Close Indicator Sign Mounting Detail

Materials

Elements

About this detail

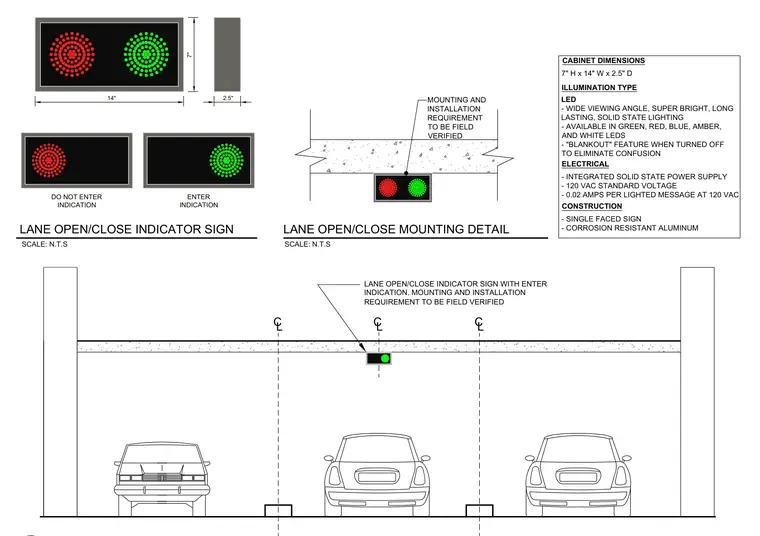

A lane open and close indicator sign with "Do Not Enter" and "Enter" indications features a 7-inch high by 14-inch wide by 2.5-inch deep corrosion-resistant aluminum cabinet construction. The unit utilizes wide viewing angle, super bright, long-lasting, solid-state LED illumination available in green, red, blue, amber, and white with a blankout feature when turned off. Electrical requirements include an integrated solid-state power supply operating at 120 volts alternating current standard voltage, drawing 0.02 amps per lighted message. Mounting and installation requirements are to be field verified.
