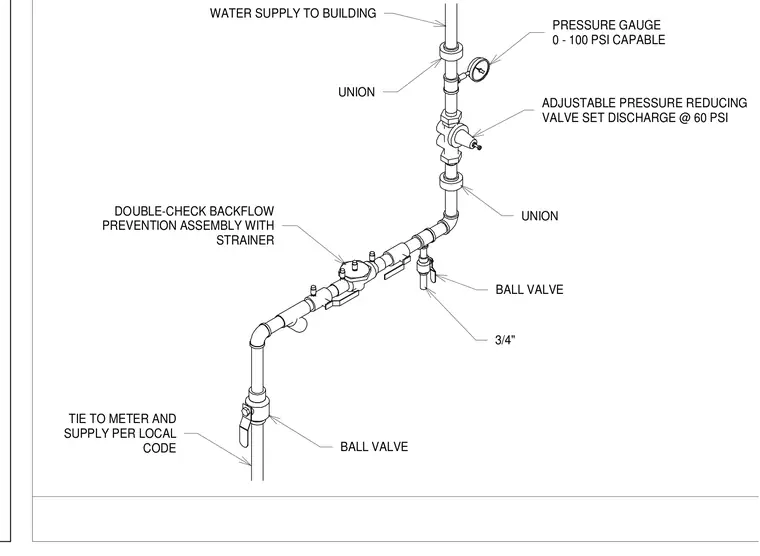

This vertical water supply riser connects to the main meter and supply line per local code using a three-quarter-inch ball valve at the base. The vertical pipe run incorporates a double-check backflow prevention assembly with strainer, flanked by isolating ball valves and unions for maintenance access. An adjustable pressure reducing valve set to discharge at sixty pounds per square inch regulates downstream pressure, accompanied by a zero to one-hundred pound-per-square-inch capable pressure gauge.
DOUBLE-CHECK BACKFLOW PREVENTION ASSEMBLY WITH STRAINER TIE TO METER AND SUPPLY PER LOCAL CODE WATER SUPPLY TO BUILDING ADJUSTABLE PRESSURE REDUCING VALVE SET DISCHARGE @ 60 PSI PRESSURE GAUGE 0 - 100 PSI CAPABLE UNION UNION BALL VALVE 3/4" BALL VALVE
