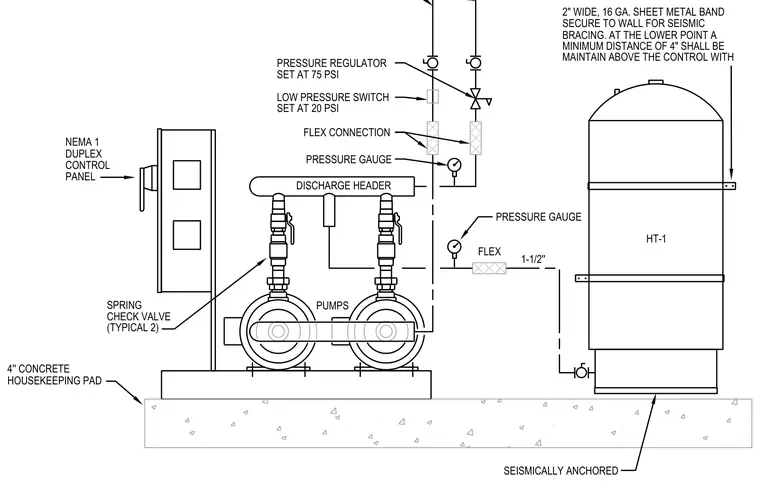

A domestic water duplex booster pump system rests on a four-inch concrete housekeeping pad, complete with a NEMA 1 duplex control panel and a seismically anchored expansion tank. The assembly includes dual pumps connected to a discharge header with two spring check valves and flexible connections. Pressure gauges, a low-pressure switch set at 20 PSI, and a pressure regulator set at 75 PSI are integrated into the piping. The expansion tank is secured to the wall for seismic bracing using a 2-inch wide, 16-gauge sheet metal band positioned a minimum of 4 inches above the control.
HT-1 SEISMICALLY ANCHORED SPRING CHECK VALVE (TYPICAL 2) CONTROL PANEL 4'' CONCRETE HOUSEKEEPING PAD DUPLEX PUMPS 1-1/2'' FLEX NEMA 1 PRESSURE GAUGE DISCHARGE HEADER PRESSURE GAUGE LOW PRESSURE SWITCH SET AT 20 PSI SECURE TO WALL FOR SEISMIC BRACING. AT THE LOWER POINT A 2" WIDE, 16 GA. SHEET METAL BAND MINIMUM DISTANCE OF 4" SHALL BE MAINTAIN ABOVE THE CONTROL WITH PRESSURE REGULATOR SET AT 75 PSI FLEX CONNECTION
