Plumbing · P-NX58J

Electric Water Heater Piping with Recirculation Detail

Elements

About this detail

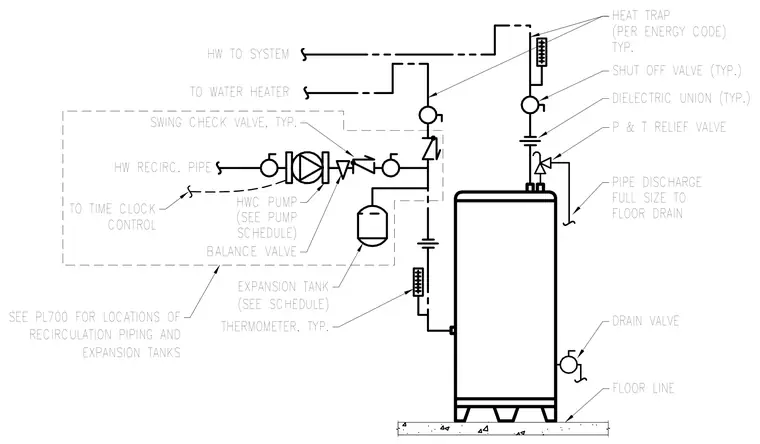

The domestic hot water system connects to the electric water heater with shut-off valves, dielectric unions, and energy-code compliant heat traps. A temperature and pressure relief valve discharges full size to a nearby floor drain. The recirculation loop includes a hot water circulator pump controlled by a time clock, accompanied by a balance valve, swing check valve, and an expansion tank. A drain valve is provided at the base of the tank above the floor line.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
