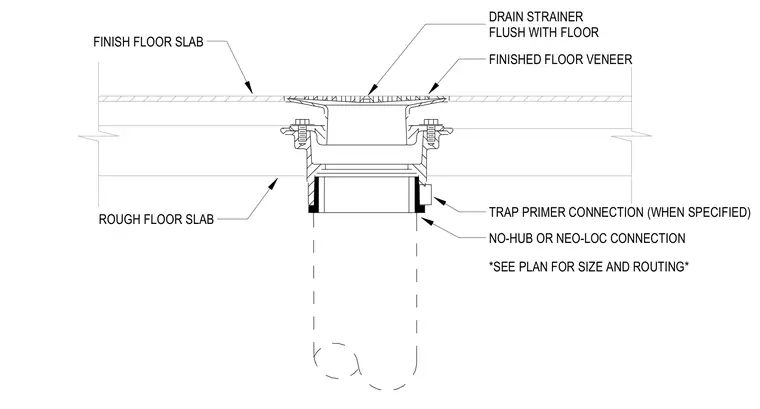

The floor drain assembly features a drain strainer set flush with the finish floor slab and finished floor veneer. The drain body passes through the rough floor slab and connects to the waste piping below via a no-hub or neo-loc connection. A trap primer connection is provided when specified, and pipe sizing and routing are coordinated per the architectural and plumbing plans.
DRAIN STRAINER FLUSH WITH FLOOR FINISH FLOOR SLAB *SEE PLAN FOR SIZE AND ROUTING* NO-HUB OR NEO-LOC CONNECTION ROUGH FLOOR SLAB FINISHED FLOOR VENEER TRAP PRIMER CONNECTION (WHEN SPECIFIED)
