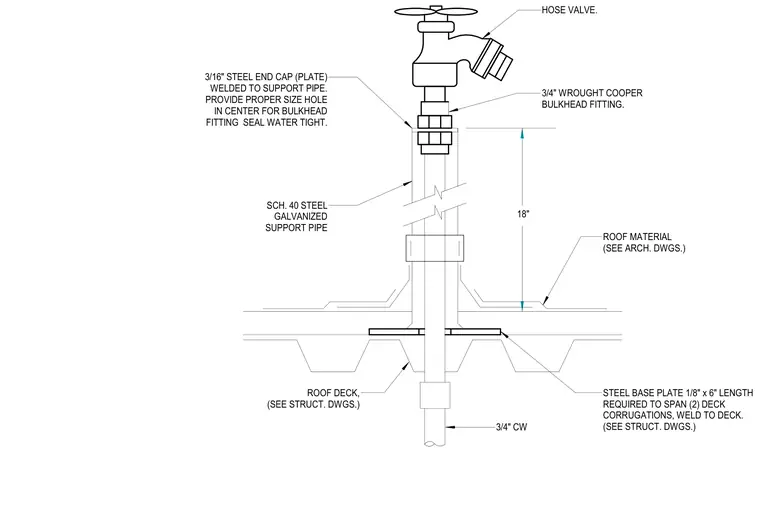

A schedule 40 steel galvanized support pipe extends through the roof deck, anchored by an 1/8-inch by 6-inch steel base plate that spans two deck corrugations and is welded to the deck. A three-sixteenth-inch steel end cap plate is welded to the top of the support pipe with a centered hole sized for a watertight bulkhead fitting. A three-quarter-inch wrought copper bulkhead fitting connects the hose valve assembly to the cold water supply pipe. Roof material flashing surrounds the penetration eighteen inches below the valve.
HOSE VALVE. 3/4" WROUGHT COOPER BULKHEAD FITTING. 18" ROOF MATERIAL (SEE ARCH. DWGS.) STEEL BASE PLATE 1/8" x 6" LENGTH REQUIRED TO SPAN (2) DECK CORRUGATIONS, WELD TO DECK. (SEE STRUCT. DWGS.) 3/4" CW 3/16" STEEL END CAP (PLATE) WELDED TO SUPPORT PIPE. PROVIDE PROPER SIZE HOLE IN CENTER FOR BULKHEAD FITTING SEAL WATER TIGHT. SCH. 40 STEEL GALVANIZED SUPPORT PIPE ROOF DECK, (SEE STRUCT. DWGS.)
