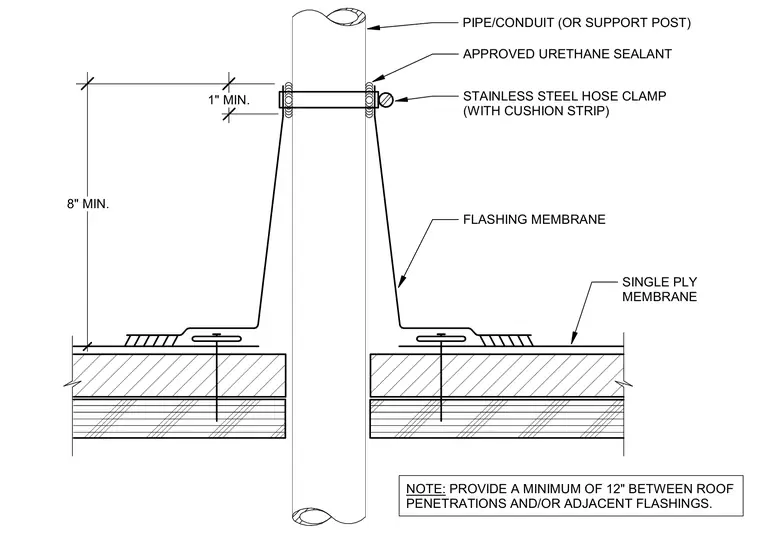

A pipe, conduit, or support post penetrates a roof assembly finished with a single-ply membrane. A flashing membrane extends up from the roof deck to provide waterproofing around the penetration, standing at least eight inches high with a one-inch minimum vertical lap at the top. The top of the flashing membrane is secured to the pipe with a stainless steel hose clamp featuring a cushion strip. Approved urethane sealant is applied at the top edge of the flashing to seal against moisture infiltration. A note specifies providing a minimum of twelve inches of clearance between roof penetrations and adjacent flashings.
SINGLE PLY MEMBRANE STAINLESS STEEL HOSE CLAMP (WITH CUSHION STRIP) FLASHING MEMBRANE PIPE/CONDUIT (OR SUPPORT POST) APPROVED URETHANE SEALANT 8" MIN. 1" MIN. NOTE: PROVIDE A MINIMUM OF 12" BETWEEN ROOF PENETRATIONS AND/OR ADJACENT FLASHINGS.
