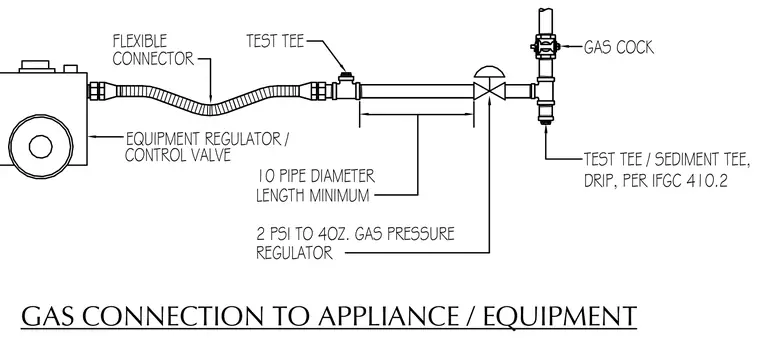

An equipment regulator and control valve connect via a flexible connector to a test tee and a two psi to four ounce gas pressure regulator. A straight pipe run maintains a minimum length of ten pipe diameters. The assembly terminates with a gas cock and a test tee / sediment tee drip complying with International Fuel Gas Code Section 410.2.
d^p=`lkkb`qflk=ql=^mmif^k`b=L=bnrfmjbkq FLEXIBLE CONNECTOR CONTROL VALVE EQUIPMENT REGULATOR / TEST TEE 10 PIPE DIAMETER LENGTH MINIMUM REGULATOR 2 PSI TO 4OZ. GAS PRESSURE TEST TEE / SEDIMENT TEE, DRIP, PER IFGC 410.2 GAS COCK
