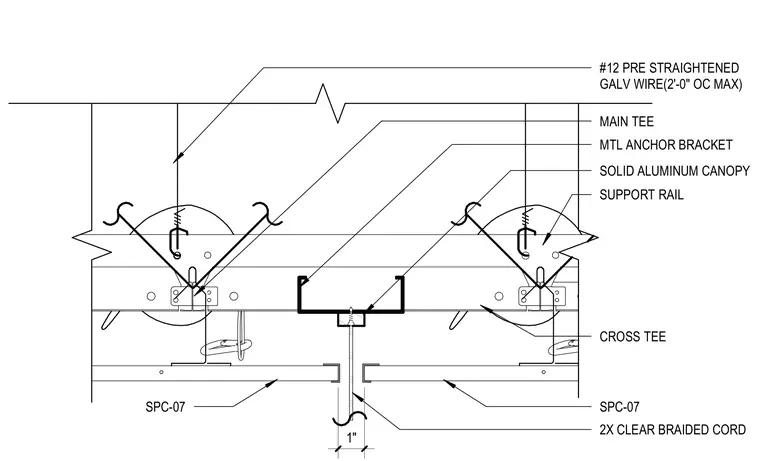

A solid aluminum canopy panel attaches to a central support rail via a metal anchor bracket and screw. The support rail is integrated into a suspended ceiling grid comprising main tees and cross tees. The ceiling grid is hung from the overhead structure using number twelve pre-straightened galvanized wire spaced at a maximum of two feet on center. Clear braided cord hangs below the canopy panels.
SPC-07 CROSS TEE #12 PRE STRAIGHTENED GALV WIRE(2'-0" OC MAX) MAIN TEE 1" SPC-07 SUPPORT RAIL SOLID ALUMINUM CANOPY 2X CLEAR BRAIDED CORD MTL ANCHOR BRACKET
