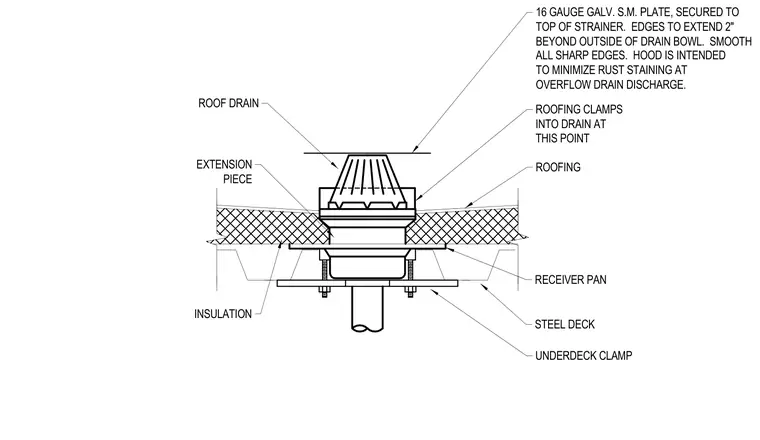

An overflow roof drain assembly penetrates a steel roof deck and insulation layer, secured by a receiver pan and an underdeck clamp with threaded fasteners. Roofing membrane clamps directly into the drain body at the roof line. A sixteen-gauge galvanized sheet metal plate acts as a hood, secured to the top of the strainer and extending two inches beyond the outside of the drain bowl to minimize rust staining from overflow discharge.
ROOFING THIS POINT INTO DRAIN AT ROOFING CLAMPS PIECE EXTENSION ROOF DRAIN RECEIVER PAN UNDERDECK CLAMP STEEL DECK INSULATION OVERFLOW DRAIN DISCHARGE. TO MINIMIZE RUST STAINING AT ALL SHARP EDGES. HOOD IS INTENDED BEYOND OUTSIDE OF DRAIN BOWL. SMOOTH TOP OF STRAINER. EDGES TO EXTEND 2" 16 GAUGE GALV. S.M. PLATE, SECURED TO
