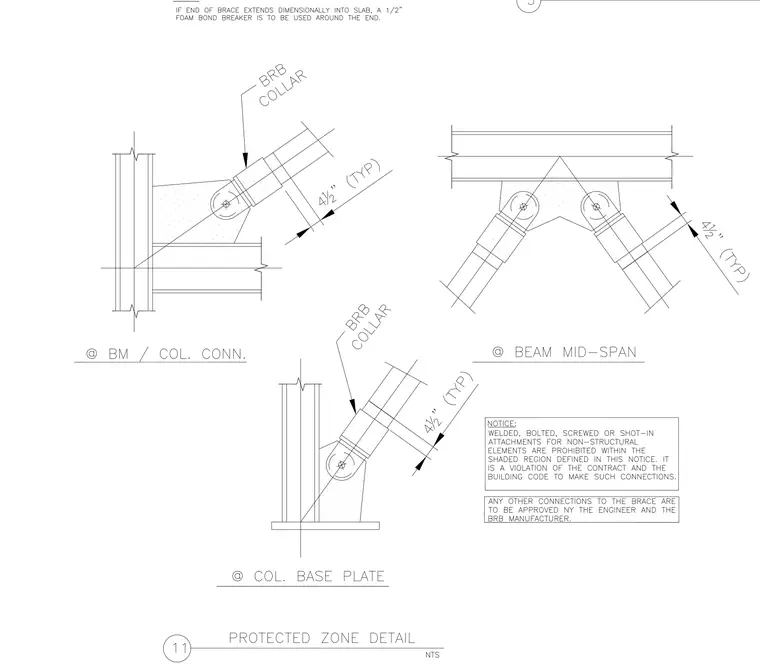

Buckling-restrained brace connections are detailed for beam-column, beam mid-span, and column base plate conditions. Each detail indicates a buckling-restrained brace with a collar, pin connection, and gusset plate assembly. A four-and-a-half-inch clearance is maintained typically along the brace. A note specifies that if the end of the brace extends dimensionally into the slab, a one-half-inch foam bond breaker is used around the end. Additional notice text prohibits welded, bolted, screwed, or shot-in attachments for non-structural elements within the shaded region.
