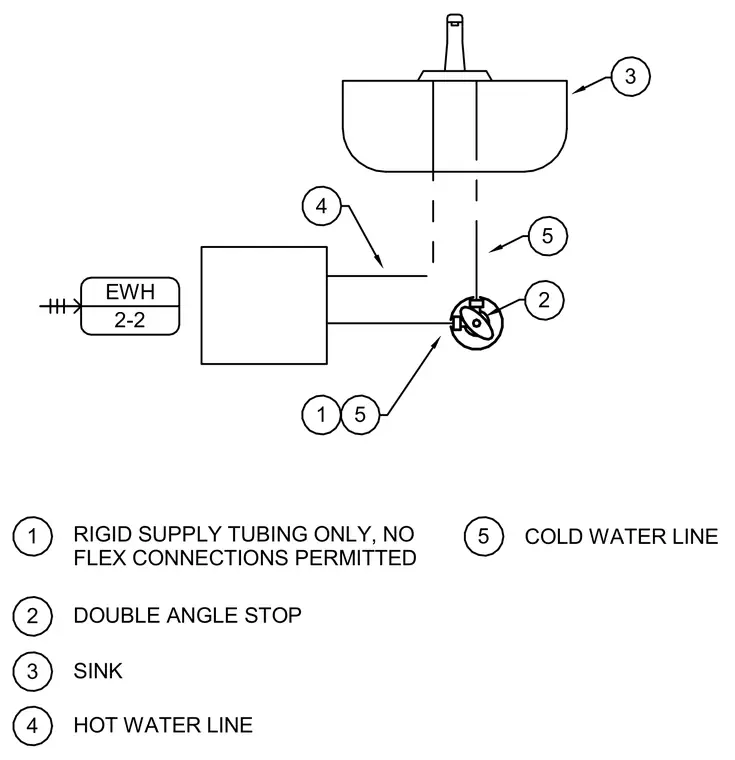

Cold water line and hot water line connect to the sink through an instant water heater and a double angle stop valve. Rigid supply tubing is required with no flex connections permitted.
COLD WATER LINE RIGID SUPPLY TUBING ONLY, NO FLEX CONNECTIONS PERMITTED DOUBLE ANGLE STOP SINK HOT WATER LINE 1 2 3 4 5 EWH 2-2 3 4 5 5 1 2
