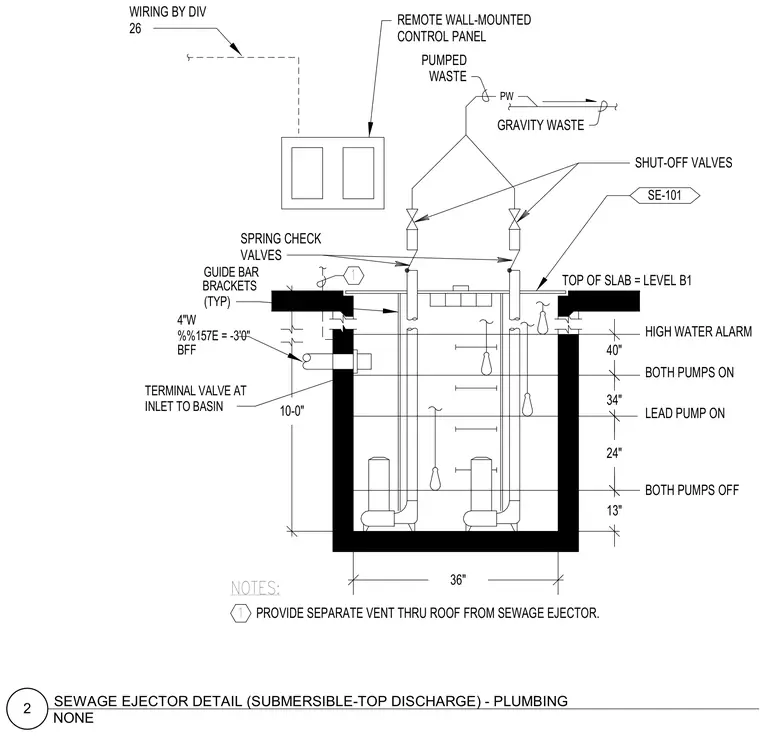

The sewage ejector assembly comprises a subsurface basin set below Level B1 with a top slab elevation of minus three feet zero inches. Dual submersible pumps feature guide bar brackets and discharge piping fitted with spring check valves and shut-off valves. A gravity waste line enters the basin with a terminal valve while pumped waste connects to the main discharge line. Float switches control levels for high water alarm, both pumps on, lead pump on, and both pumps off. A separate vent runs through the roof from the sewage ejector and electrical wiring is provided by Division 26.
PW NOTES: SPRING CHECK VALVES HIGH WATER ALARM BOTH PUMPS ON LEAD PUMP ON BOTH PUMPS OFF SHUT-OFF VALVES SE-101 13" 34" 24" 40" 10-0" 36" REMOTE WALL-MOUNTED CONTROL PANEL PROVIDE SEPARATE VENT THRU ROOF FROM SEWAGE EJECTOR. 1 TERMINAL VALVE AT INLET TO BASIN 4"W %%157E = -3'0" TOP OF SLAB = LEVEL B1 GUIDE BAR BRACKETS (TYP) 1 GRAVITY WASTE WIRING BY DIV 26 PUMPED WASTE BFF NONE 2 SEWAGE EJECTOR DETAIL (SUBMERSIBLE-TOP DISCHARGE) - PLUMBING
