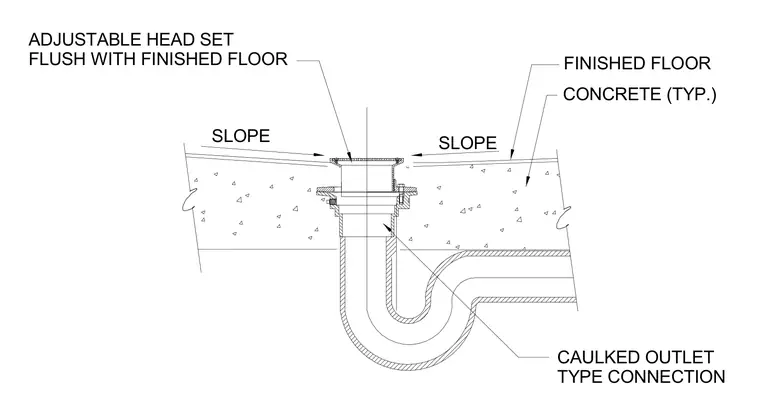

An adjustable head floor drain is set flush with the finished floor surface within a typical concrete slab. The surrounding concrete slab slopes toward the drain assembly to ensure positive drainage. A caulked outlet type connection joins the drain body to the waste piping below.
ADJUSTABLE HEAD SET FLUSH WITH FINISHED FLOOR CAULKED OUTLET TYPE CONNECTION SLOPE SLOPE FINISHED FLOOR CONCRETE (TYP.)
