An overhead pipe is supported by a clevis hanger connected via a vertical threaded rod to a suitable upper attachment on the support structure above. Bolted connections are secured using lock washers and double nuts. Support spacing, upper attachments, and supports are provided per specifications while maintaining a hanger length of less than three hundred five millimeters where possible.

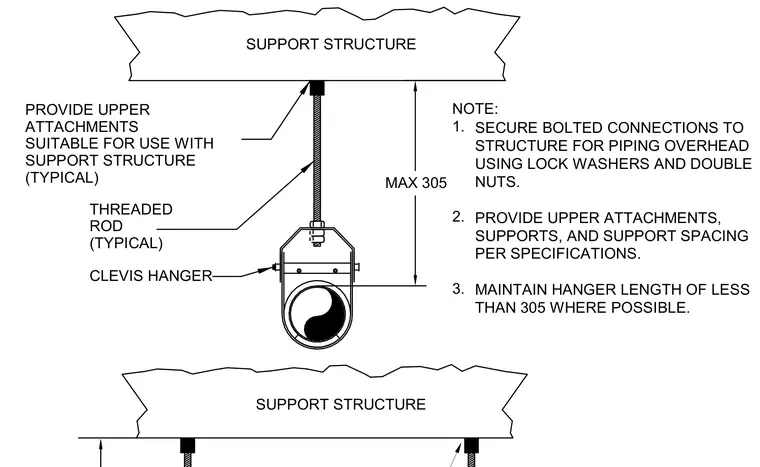

SECURE BOLTED CONNECTIONS TO STRUCTURE FOR PIPING OVERHEAD USING LOCK WASHERS AND DOUBLE NUTS. PROVIDE UPPER ATTACHMENTS, SUPPORTS, AND SUPPORT SPACING PER SPECIFICATIONS. MAINTAIN HANGER LENGTH OF LESS THAN 305 WHERE POSSIBLE. SUPPORT STRUCTURE SUPPORT STRUCTURE PROVIDE UPPER ATTACHMENTS SUITABLE FOR USE WITH SUPPORT STRUCTURE (TYPICAL) THREADED ROD (TYPICAL) CLEVIS HANGER NOTE: 1. 2. 3. MAX 305
