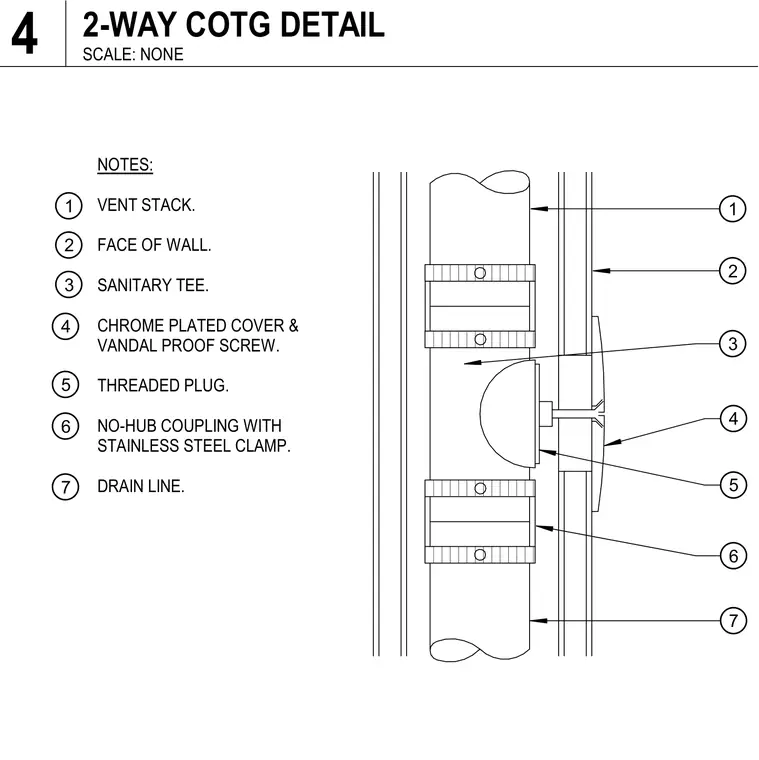

A sanitary tee connects the vertical drain line and vent stack within the wall framing. A threaded plug seals the cleanout opening, secured behind a chrome-plated cover plate with a vandal-proof screw flush with the face of the wall. No-hub couplings with stainless steel clamps join the piping segments together.
NOTES: VENT STACK. FACE OF WALL. SANITARY TEE. CHROME PLATED COVER & VANDAL PROOF SCREW. THREADED PLUG. NO-HUB COUPLING WITH STAINLESS STEEL CLAMP. DRAIN LINE. 1 2 3 4 5 6 7 1 2 3 4 5 6 7 SCALE: NONE 2-WAY COTG DETAIL 4
