The floor cleanout assembly consists of a cleanout plug and body connected to a vertical waste pipe with an adjusting collar and a flush cover secured by a screw at the finished floor level. The waste line drops to a full-size bend with a maximum four-inch radius connecting to a wye fitting with a reducing branch if the main exceeds four inches, complete with a plug if at the end of the line. The wall cleanout utilizes a sanitary tee branching off a vertical waste pipe through a finished wall to an access cover.

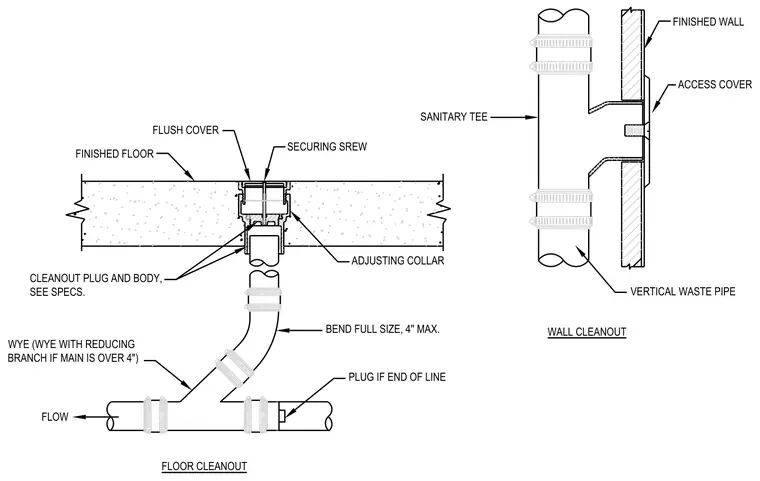

FLUSH COVER FINISHED FLOOR FLOW PLUG IF END OF LINE ADJUSTING COLLAR SECURING SREW FLOOR CLEANOUT CLEANOUT PLUG AND BODY, SEE SPECS. WYE (WYE WITH REDUCING BRANCH IF MAIN IS OVER 4") BEND FULL SIZE, 4'' MAX. VERTICAL WASTE PIPE SANITARY TEE ACCESS COVER FINISHED WALL WALL CLEANOUT
