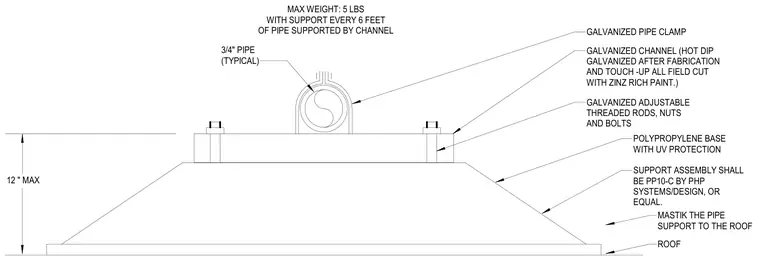

A three-quarter inch pipe rests in a galvanized pipe clamp supported by a hot-dip galvanized channel. Galvanized adjustable threaded rods, nuts, and bolts connect the channel to a UV-protected polypropylene base. The support assembly rests on the roof and is adhered with mastic, with a maximum weight of five pounds per support and supports spaced every six feet.
12 " MAX . . ROOF 3/4" PIPE (TYPICAL) GALVANIZED PIPE CLAMP GALVANIZED CHANNEL (HOT DIP GALVANIZED AFTER FABRICATION AND TOUCH -UP ALL FIELD CUT WITH ZINZ RICH PAINT.) GALVANIZED ADJUSTABLE THREADED RODS, NUTS AND BOLTS POLYPROPYLENE BASE WITH UV PROTECTION SUPPORT ASSEMBLY SHALL BE PP10-C BY PHP SYSTEMS/DESIGN, OR EQUAL. MAX WEIGHT: 5 LBS WITH SUPPORT EVERY 6 FEET OF PIPE SUPPORTED BY CHANNEL MASTIK THE PIPE SUPPORT TO THE ROOF
