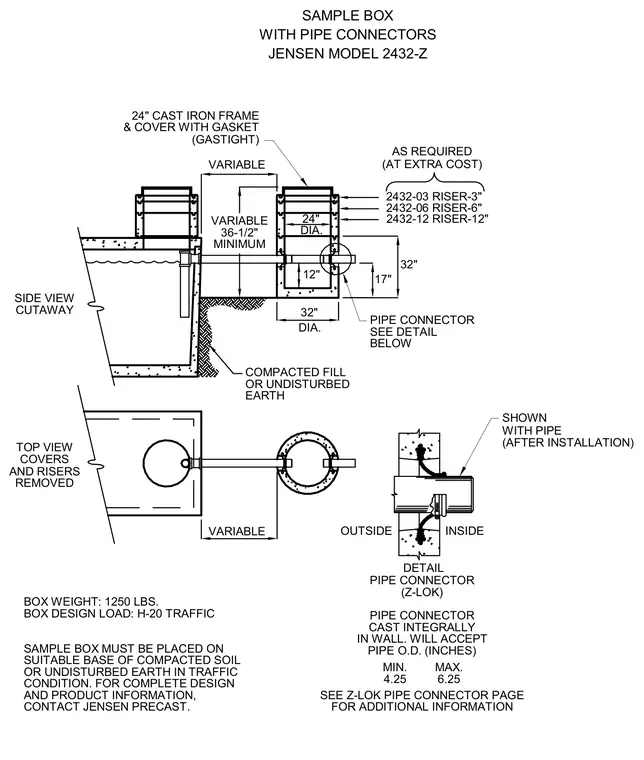

A precast concrete sample box incorporates a Z-Lok pipe connector cast integrally into the wall for H-20 traffic loading conditions. The assembly features a twenty-four-inch cast iron frame and gastight cover, with optional three-inch, six-inch, and twelve-inch risers provided to adjust overall height as required. The thirty-two-inch diameter box rests on a suitable base of compacted fill or undisturbed earth. The integrated flexible connector accommodates pipe outside diameters ranging from 4.25 inches to 6.25 inches.
SIDE VIEW CUTAWAY (Z-LOK) DETAIL PIPE CONNECTOR INSIDE OUTSIDE BOX WEIGHT: 1250 LBS. BOX DESIGN LOAD: H-20 TRAFFIC SAMPLE BOX MUST BE PLACED ON SUITABLE BASE OF COMPACTED SOIL OR UNDISTURBED EARTH IN TRAFFIC CONDITION. FOR COMPLETE DESIGN AND PRODUCT INFORMATION, CONTACT JENSEN PRECAST. PIPE CONNECTOR CAST INTEGRALLY IN WALL. WILL ACCEPT PIPE O.D. (INCHES) MIN. 4.25 6.25 MAX. SEE Z-LOK PIPE CONNECTOR PAGE FOR ADDITIONAL INFORMATION WITH PIPE (AFTER INSTALLATION) TOP VIEW COVERS AND RISERS REMOVED VARIABLE COMPACTED FILL OR UNDISTURBED EARTH PIPE CONNECTOR SEE DETAIL BELOW 24" DIA. 2432-03 RISER-3" 2432-06 RISER-6" 2432-12 RISER-12" (AT EXTRA COST) AS REQUIRED (GASTIGHT) 24" CAST IRON FRAME & COVER WITH GASKET SHOWN 32" 12" 17" 32" DIA. VARIABLE VARIABLE 36-1/2" MINIMUM WITH PIPE CONNECTORS SAMPLE BOX JENSEN MODEL 2432-Z
