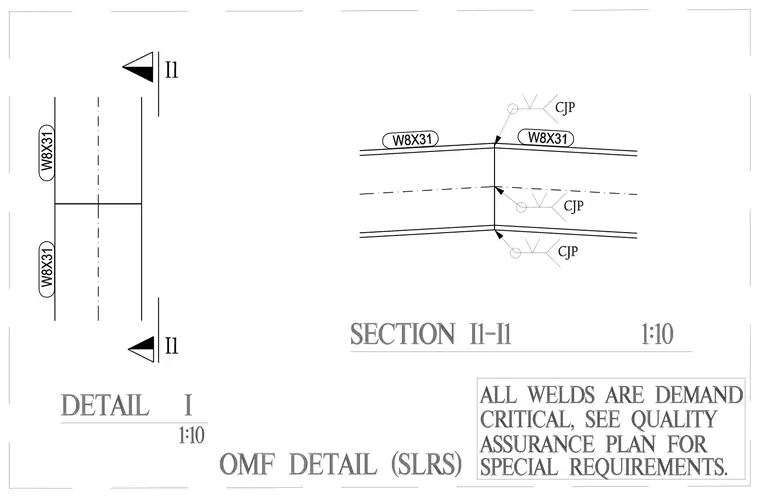

Two W8X31 wide-flange steel beams connect end-to-end via a complete-joint-penetration groove weld designated as demand critical. The joint utilizes complete-joint-penetration welds across the flanges and web per special moment frame requirements. All welds are subject to quality assurance special requirements as noted in the structural specifications.
