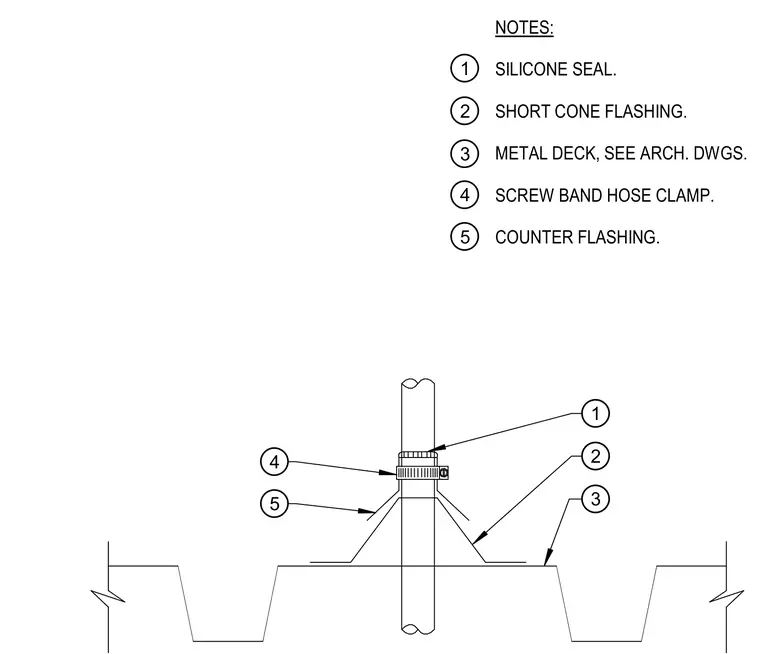

A vertical pipe penetrates a metal deck roof assembly coordinated with architectural drawings, sealed with a short cone flashing over the deck. A screw band hose clamp secures the top of the flashing to the pipe, finished with a silicone seal at the joint and a counter flashing above.
NOTES: SILICONE SEAL. SHORT CONE FLASHING. METAL DECK, SEE ARCH. DWGS. SCREW BAND HOSE CLAMP. COUNTER FLASHING. 1 2 3 4 5 1 2 3 4 5
