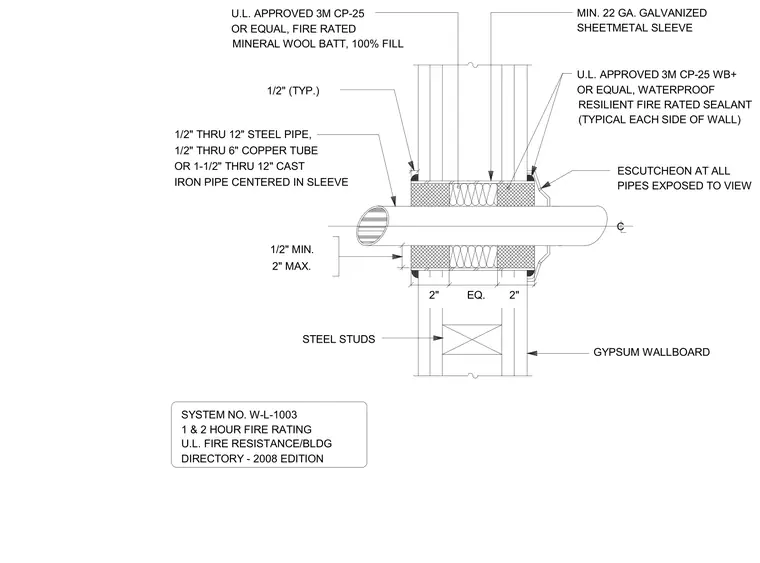

A bare pipe passes through a fire-rated steel stud and gypsum wallboard partition centered within a minimum twenty-two gauge galvanized sheet metal sleeve. The annular space is packed with a one-hundred percent fill of Underwriters Laboratories approved mineral wool batt insulation. Waterproof resilient fire-rated sealant is applied at each side of the wall between the pipe and the sleeve. Escutcheons are installed on all pipes exposed to view on each side of the wall. The assembly complies with Underwriters Laboratories Fire Resistance Directory system number W-L-1003 for one and two-hour fire ratings.
1/2" MIN. 2" MAX. STEEL STUDS DIRECTORY - 2008 EDITION U.L. FIRE RESISTANCE/BLDG 1 & 2 HOUR FIRE RATING SYSTEM NO. W-L-1003 2" EQ. 2" 1/2" (TYP.) U.L. APPROVED 3M CP-25 MINERAL WOOL BATT, 100% FILL OR EQUAL, FIRE RATED GYPSUM WALLBOARD OR EQUAL, WATERPROOF U.L. APPROVED 3M CP-25 WB+ PIPES EXPOSED TO VIEW ESCUTCHEON AT ALL (TYPICAL EACH SIDE OF WALL) RESILIENT FIRE RATED SEALANT C MIN. 22 GA. GALVANIZED SHEETMETAL SLEEVE 1/2" THRU 6" COPPER TUBE 1/2" THRU 12" STEEL PIPE, OR 1-1/2" THRU 12" CAST IRON PIPE CENTERED IN SLEEVE
