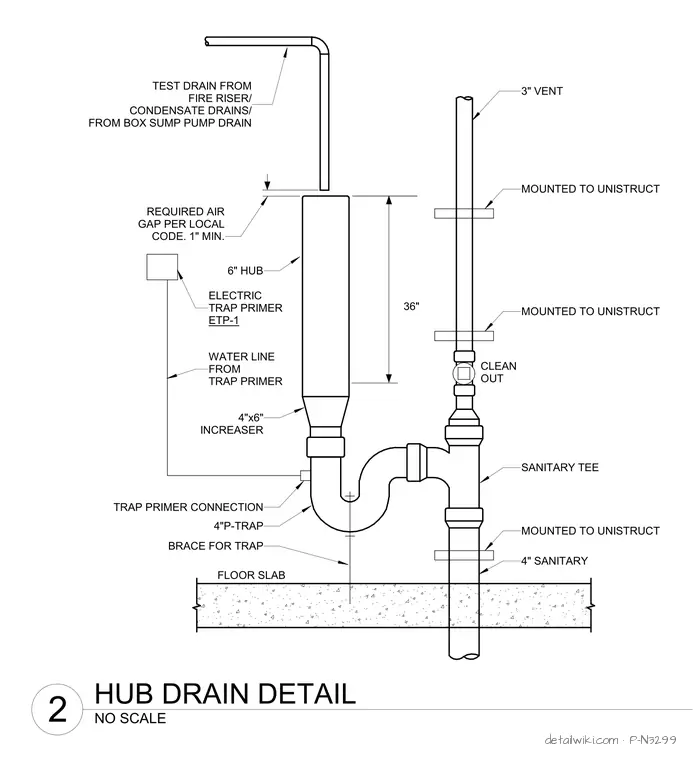

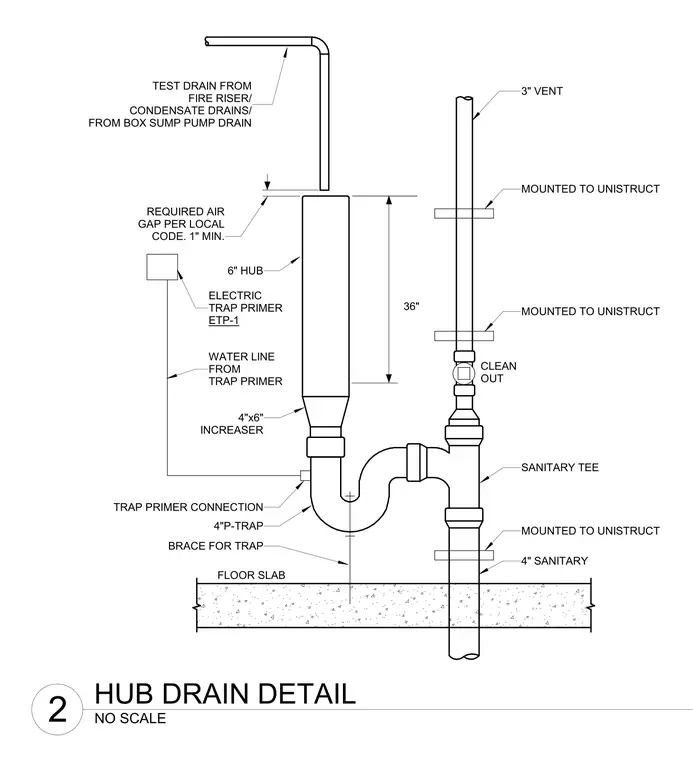

P-N3299 — Hub Drain Detail

Plumbing · P-N3299

Hub Drain Detail

Units: imperial
Sheet: P-400
Discipline: Plumbing

Materials

Elements

Bracing Connections / Plates Drainage Floors / Slabs Stairs

Connections

Bracing Connection

Text on the drawing

36" REQUIRED AIR GAP PER LOCAL CODE. 1" MIN. 4"x6" INCREASER 4"P-TRAP FLOOR SLAB TEST DRAIN FROM FIRE RISER/ CONDENSATE DRAINS/ FROM BOX SUMP PUMP DRAIN 4" SANITARY SANITARY TEE 3" VENT 6" HUB ELECTRIC TRAP PRIMER ETP-1 CLEAN OUT BRACE FOR TRAP MOUNTED TO UNISTRUCT MOUNTED TO UNISTRUCT MOUNTED TO UNISTRUCT WATER LINE FROM TRAP PRIMER TRAP PRIMER CONNECTION NO SCALE 2 HUB DRAIN DETAIL
