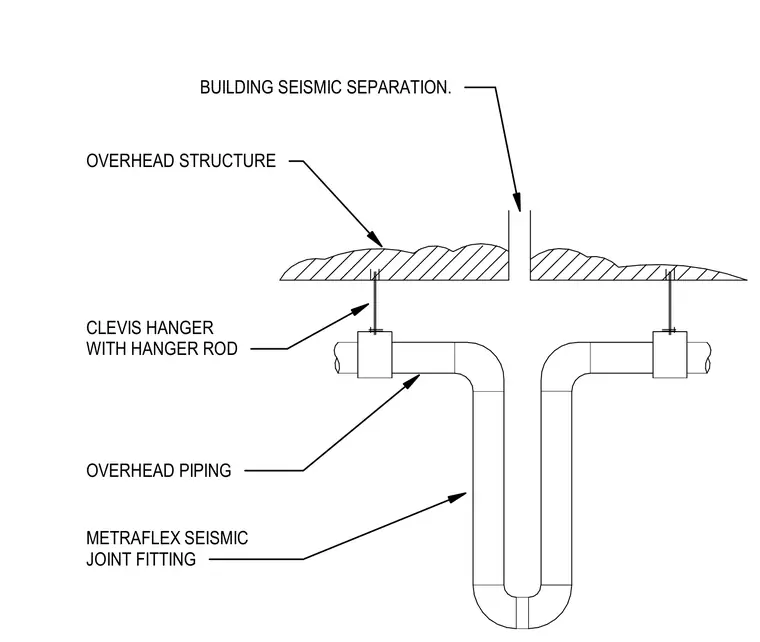

Overhead piping is suspended from the overhead structure using clevis hangers with hanger rods positioned on both sides of a building seismic separation. A Metraflex seismic joint fitting accommodates differential movement across the joint. The layout ensures piping flexibility without stressing the supports during a seismic event.
OVERHEAD STRUCTURE METRAFLEX SEISMIC JOINT FITTING BUILDING SEISMIC SEPARATION. OVERHEAD PIPING CLEVIS HANGER WITH HANGER ROD
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
