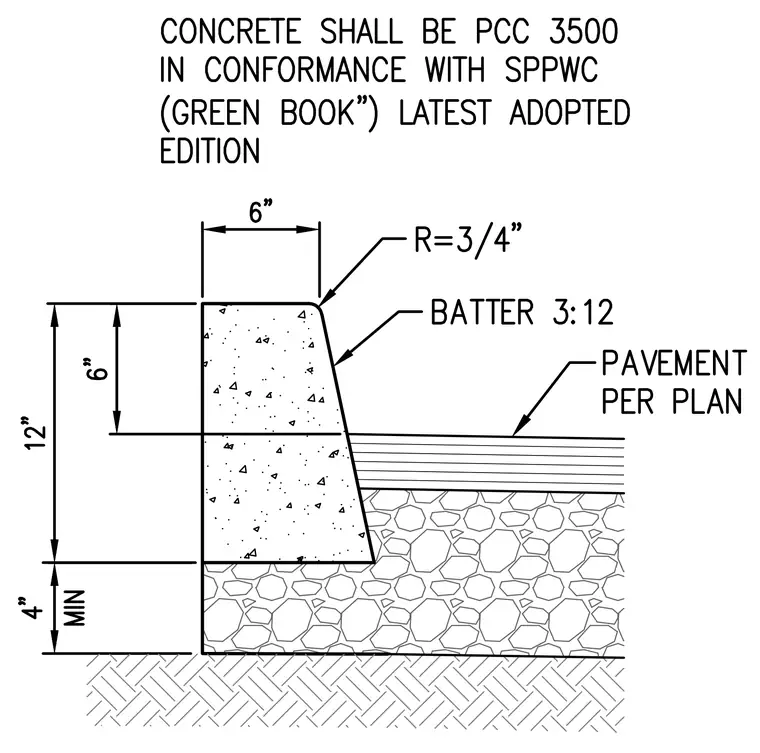

Concrete shall be Portland cement concrete 3500 psi in conformance with SPPWC Green Book latest adopted edition. The 12-inch high concrete curb features a 6-inch top width with a 3/4-inch radius edge and a 3:12 batter on the traffic face. The curb bears on a 4-inch minimum compacted aggregate base over subgrade. Adjacent pavement is sized per plan.
