Plumbing · P-MW57G

Commercial Dishwasher Plumbing Connections

Materials

Elements

Walls Floors / Slabs Insulation Drainage Connections / Plates

About this detail

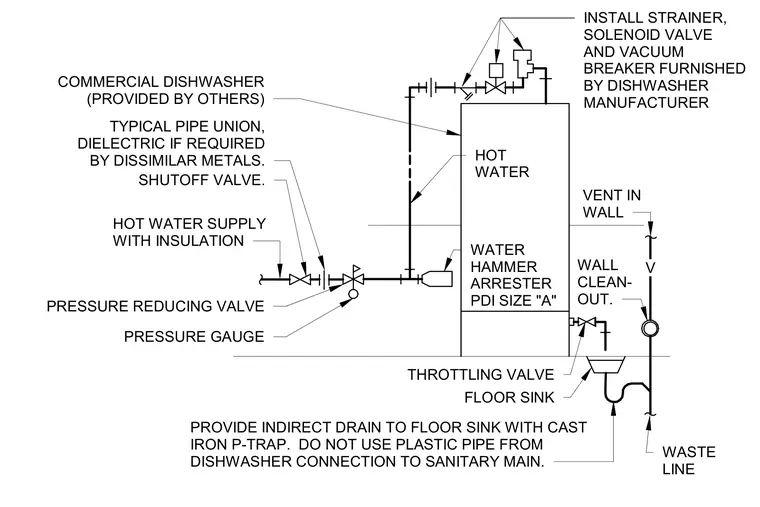

The commercial dishwasher water supply includes an insulated hot water pipe equipped with a shutoff valve, a dielectric pipe union for dissimilar metals, a pressure reducing valve, and a pressure gauge. A water hammer arrester of PDI size A is installed near the unit alongside a strainer, solenoid valve, and vacuum breaker furnished by the dishwasher manufacturer. The waste line features an indirect drain discharging into a floor sink with a cast iron P-trap, a wall cleanout, and a vent in the wall. Plastic pipe must not be used from the dishwasher connection to the sanitary main.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
