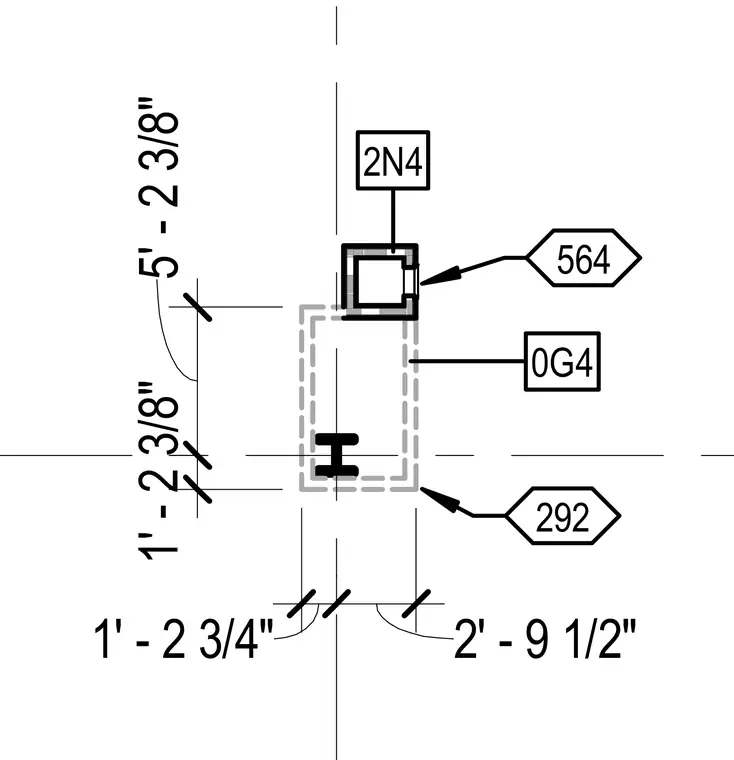

Plumbing piping and hanger layout detail featuring dimensioned offsets and structural supports. The layout includes vertical dimensions of 1 foot 2-3/8 inches and 5 feet 2-3/8 inches, with horizontal dimensions of 1 foot 2-3/4 inches and 2 feet 9-1/2 inches. Tagged elements 2N4, 564, 0G4, and 292 reference specific components and routing locations.
