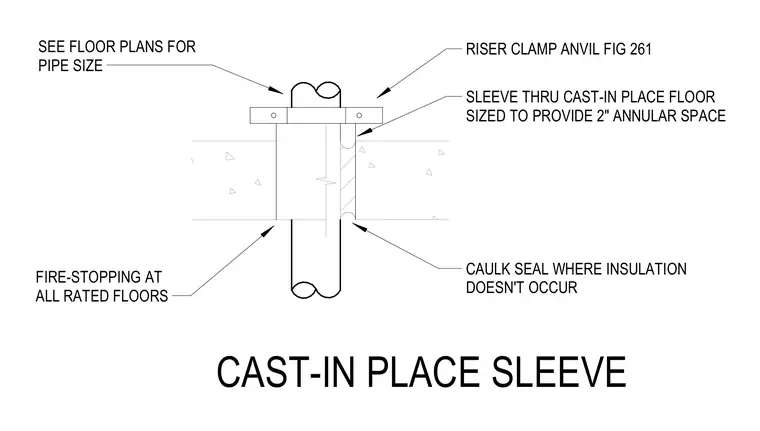

A cast-in-place sleeve penetrates the concrete floor slab to accommodate vertical piping while providing a two-inch annular space. An Anvil Fig 261 riser clamp supports the pipe and bears on the top of the slab. Fire-stopping is installed at all rated floors around the penetration, supplemented by a caulk seal where insulation is omitted. Pipe sizing is determined per floor plans.
SEE FLOOR PLANS FOR PIPE SIZE FIRE-STOPPING AT ALL RATED FLOORS CAULK SEAL WHERE INSULATION DOESN'T OCCUR SLEEVE THRU CAST-IN PLACE FLOOR SIZED TO PROVIDE 2" ANNULAR SPACE RISER CLAMP ANVIL FIG 261 CAST-IN PLACE SLEEVE
