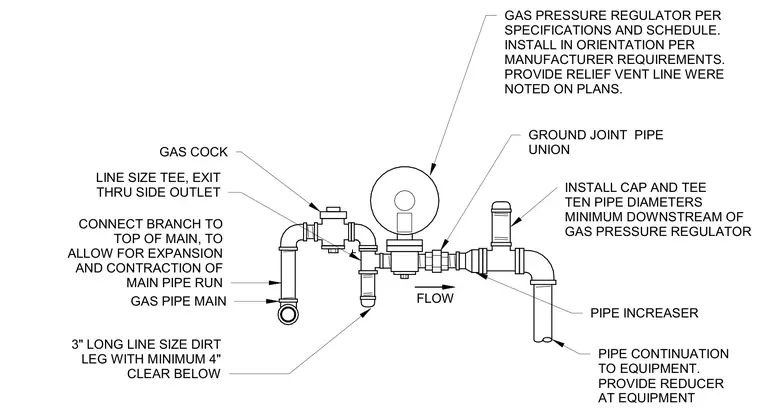

The branch connection ties into the top of the gas pipe main to accommodate thermal expansion and contraction of the main run. A gas cock precedes a line size tee with a side outlet and a three-inch long line size dirt leg extending below with a minimum of four inches of clear space. The gas pressure regulator is installed in the orientation specified by the manufacturer alongside a relief vent line where required by plans. Downstream of the regulator, a ground joint pipe union connects to a pipe increaser, followed by a tee with a cap installed at a minimum distance of ten pipe diameters downstream. The piping continues toward the equipment with a reducer provided at the final connection.
FLOW GAS PIPE MAIN GAS COCK GAS PRESSURE REGULATOR PER SPECIFICATIONS AND SCHEDULE. INSTALL IN ORIENTATION PER MANUFACTURER REQUIREMENTS. PROVIDE RELIEF VENT LINE WERE NOTED ON PLANS. PIPE INCREASER CONNECT BRANCH TO TOP OF MAIN, TO ALLOW FOR EXPANSION AND CONTRACTION OF MAIN PIPE RUN 3" LONG LINE SIZE DIRT LEG WITH MINIMUM 4" CLEAR BELOW LINE SIZE TEE, EXIT THRU SIDE OUTLET GROUND JOINT PIPE UNION INSTALL CAP AND TEE TEN PIPE DIAMETERS MINIMUM DOWNSTREAM OF GAS PRESSURE REGULATOR PIPE CONTINUATION TO EQUIPMENT. PROVIDE REDUCER AT EQUIPMENT
