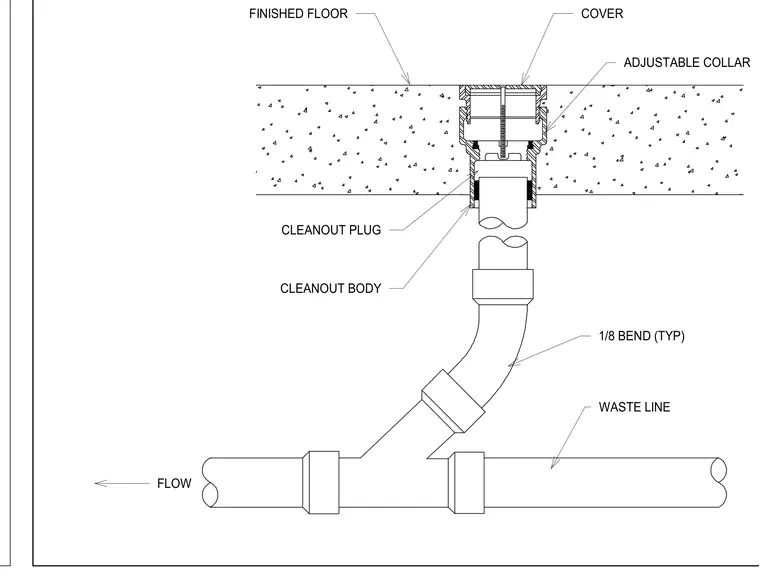

An adjustable collar sits flush with the finished floor level, housing a cover above a cleanout plug and cleanout body. The cleanout body connects downward to a waste line through a typical one-eighth bend fitting aligned with the direction of flow.
1/8 BEND (TYP) ADJUSTABLE COLLAR COVER FINISHED FLOOR CLEANOUT PLUG CLEANOUT BODY FLOW WASTE LINE
