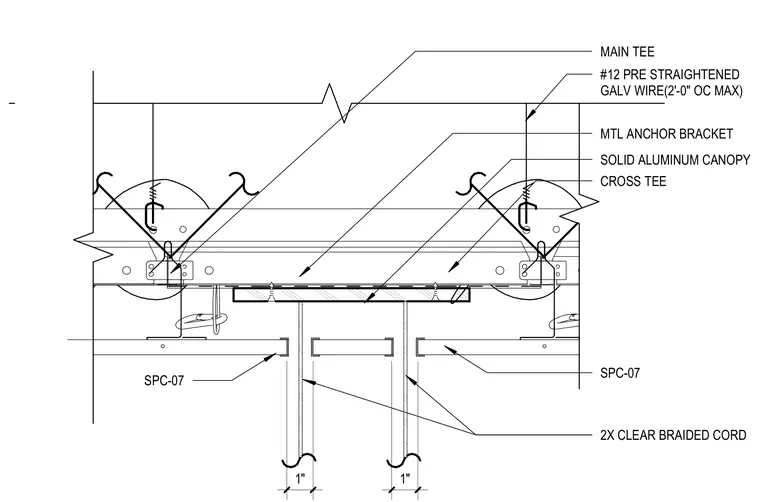

A solid aluminum canopy panel is suspended beneath a suspended ceiling grid system composed of main tees and cross tees. The assembly hangs from number twelve pre-straightened galvanized wire spaced at a maximum of two feet on center. Metal anchor brackets secure the solid aluminum canopy to the grid framework. Two-inch clear braided cords hang below the canopy assembly.
SPC-07 CROSS TEE #12 PRE STRAIGHTENED GALV WIRE(2'-0" OC MAX) MAIN TEE 1" SPC-07 SOLID ALUMINUM CANOPY MTL ANCHOR BRACKET 2X CLEAR BRAIDED CORD 1"
