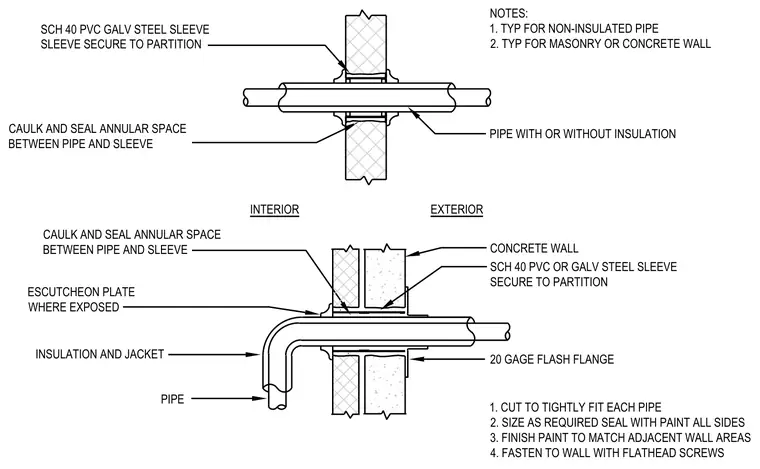

A schedule forty PVC or galvanized steel sleeve passes through a concrete or masonry wall to accommodate an insulated or uninsulated pipe. The annular space between the pipe and sleeve is filled with sealant and caulk on both interior and exterior sides. An escutcheon plate is installed where the pipe is exposed on the interior, and a twenty gauge flash flange is fitted on the exterior side. The sleeve is secured to the partition, and all penetrations are cut to tightly fit each pipe.
1. CUT TO TIGHTLY FIT EACH PIPE 2. SIZE AS REQUIRED SEAL WITH PAINT ALL SIDES 3. FINISH PAINT TO MATCH ADJACENT WALL AREAS 4. FASTEN TO WALL WITH FLATHEAD SCREWS SCH 40 PVC GALV STEEL SLEEVE SLEEVE SECURE TO PARTITION CAULK AND SEAL ANNULAR SPACE BETWEEN PIPE AND SLEEVE NOTES: 1. TYP FOR NON-INSULATED PIPE 2. TYP FOR MASONRY OR CONCRETE WALL PIPE WITH OR WITHOUT INSULATION INTERIOR EXTERIOR CAULK AND SEAL ANNULAR SPACE BETWEEN PIPE AND SLEEVE ESCUTCHEON PLATE WHERE EXPOSED PIPE INSULATION AND JACKET CONCRETE WALL SCH 40 PVC OR GALV STEEL SLEEVE SECURE TO PARTITION 20 GAGE FLASH FLANGE
