Ice Machine Connections

Materials

Elements

Partitions Floors / Slabs Drainage Connections / Plates

About this detail

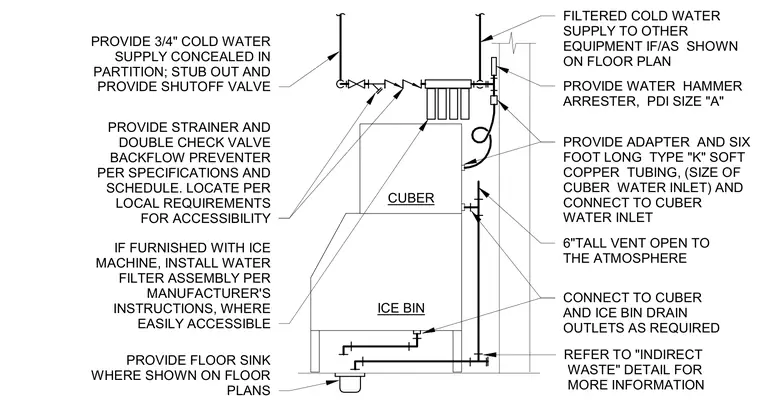

A three-quarter-inch cold water supply line is concealed within the partition and stubbed out with a shutoff valve, a strainer, and a double check valve backflow preventer. A water filter assembly is installed per the manufacturer instructions where easily accessible, with a filtered cold water supply branch extending to other equipment if required. A PDI size A water hammer arrester is provided along with an adapter and six feet of type K soft copper tubing connecting to the cuber water inlet. Cuber and ice bin drain outlets connect to an indirect waste piping system featuring a six-inch tall atmospheric vent and discharge to a floor sink shown on the floor plans.
