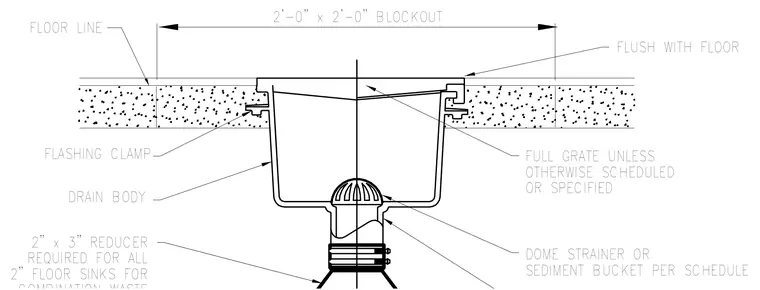

The floor sink is set within a two-foot by two-foot blockout, positioned flush with the finished floor line. A flashing clamp secures the waterproofing membrane at the drain body flange. The drain body connects to the waste piping below with a two-by-three-inch reducer as required for combination waste. A dome strainer or sediment bucket is included per schedule, and a full grate sits flush at the top unless otherwise specified.
FLASHING CLAMP FLOOR LINE 2" FLOOR SINKS FOR REQUIRED FOR ALL 2" x 3" REDUCER DRAIN BODY 2'-0" x 2'-0" BLOCKOUT OR SPECIFIED DOME STRAINER OR FLUSH WITH FLOOR OTHERWISE SCHEDULED FULL GRATE UNLESS SEDIMENT BUCKET PER SCHEDULE
