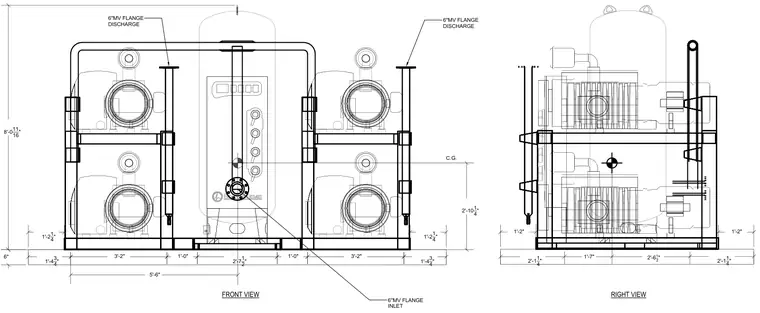

Front and right elevations of a medical vacuum pump unit show overall dimensions and connection locations. The system includes a six-inch medical vacuum flange inlet and six-inch medical vacuum flange discharges positioned on the assembly. Overall height measures eight feet and eleven sixteenths of an inch, with a center of gravity marked two feet ten and one-quarter inches above the base. Additional layout dimensions define the footprint and spacing across the base frame.
6''MV FLANGE INLET 6''MV FLANGE DISCHARGE 6''MV FLANGE DISCHARGE FRONT VIEW RIGHT VIEW C.G. 2'-10 1_ 4 " 2'-1 1_ 4 " 2'-1 1_ 4 " 1'-2" 1'-2" 1'-4 3_ 4 " 3'-2" 1'-0" 2'-7 1_ 2 " 1'-0" 3'-2" 1'-4 3_ 4 " 1'-2 1_ 4 " 1'-2 1_ 4 " 6" 8'-0 11 __ 16 " 5'-6" 2'-6 1_ 2 " 1'-7"
