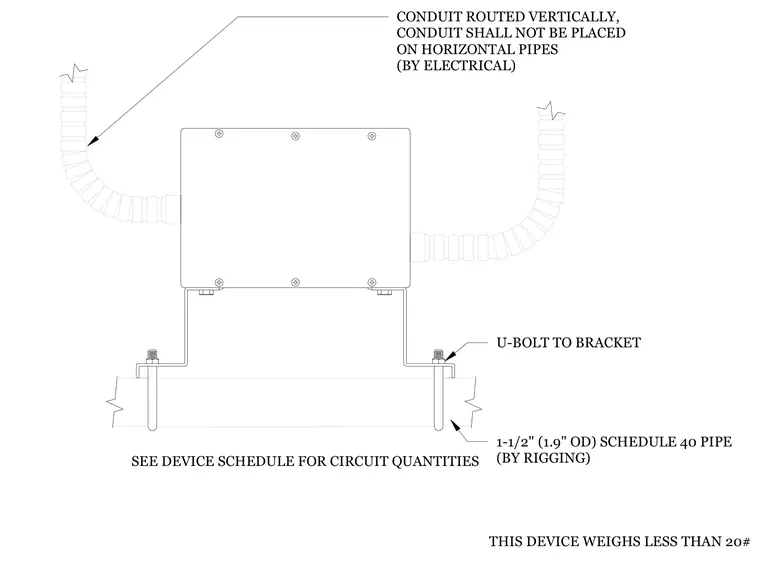

A mounting bracket supports a lighting device weighing less than twenty pounds above a one and one-half inch schedule forty pipe with a one and nine-tenths inch outer diameter provided by rigging. U-bolts secure the bracket to the pipe. Conduit is routed vertically and kept off horizontal pipes by electrical contractors.
SEE DEVICE SCHEDULE FOR CIRCUIT QUANTITIES THIS DEVICE WEIGHS LESS THAN 20# CONDUIT ROUTED VERTICALLY, CONDUIT SHALL NOT BE PLACED ON HORIZONTAL PIPES (BY ELECTRICAL) U-BOLT TO BRACKET 1-1/2" (1.9" OD) SCHEDULE 40 PIPE (BY RIGGING)
