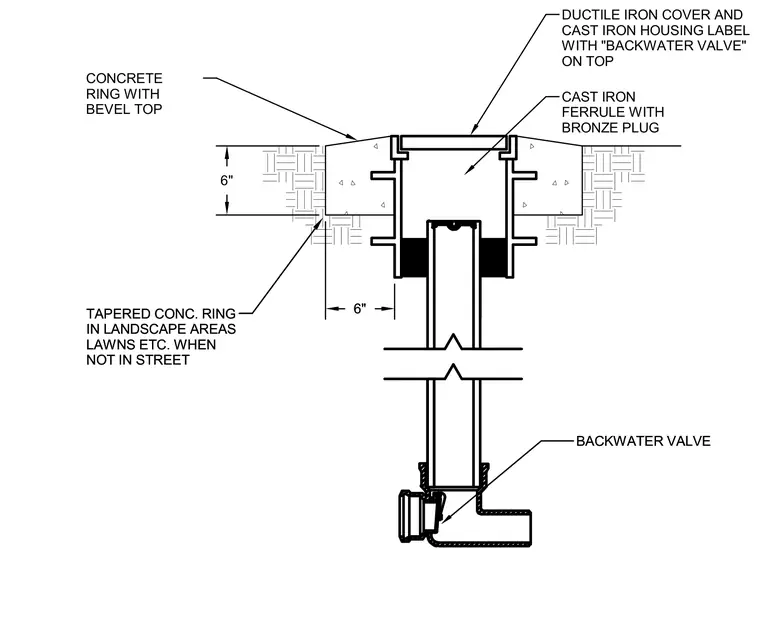

A backwater valve is installed on the plumbing line below grade, featuring a cast iron housing and a backwater valve mechanism at the lower portion. A cast iron ferrule with a bronze plug sits within the upper housing. The entire assembly is capped with a ductile iron cover and cast iron housing labeled with "BACKWATER VALVE" on top. A six-inch concrete ring with a bevel top surrounds the housing in landscape areas and lawns when not located in a street.
6" 6" CONCRETE RING WITH BEVEL TOP DUCTILE IRON COVER AND CAST IRON HOUSING LABEL WITH "BACKWATER VALVE" ON TOP CAST IRON FERRULE WITH BRONZE PLUG TAPERED CONC. RING IN LANDSCAPE AREAS LAWNS ETC. WHEN NOT IN STREET BACKWATER VALVE BACKWATER VALVE TAPERED CONC. RING IN LANDSCAPE AREAS LAWNS ETC. WHEN NOT IN STREET 6"
