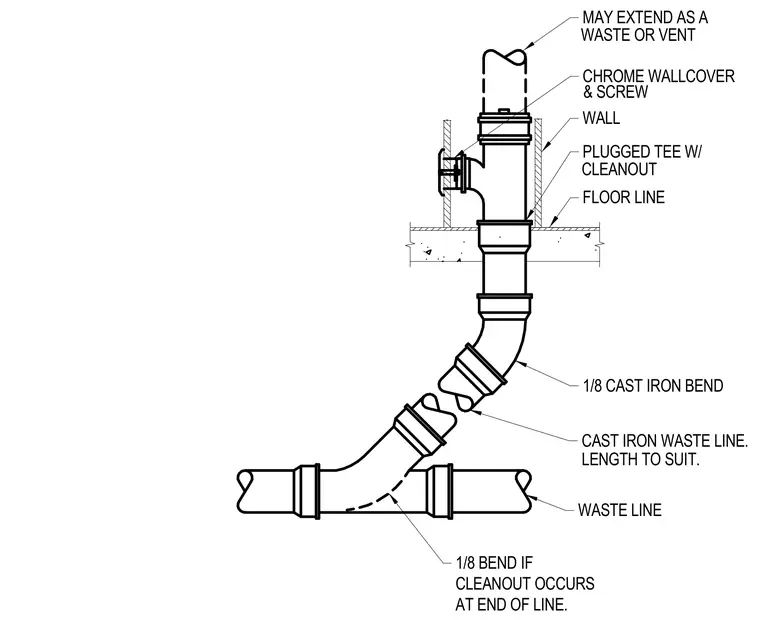

A cast iron waste line connects to a plugged tee fitting with a cleanout plug accessible through the wall via a chrome wall cover and screw. The vertical pipe passes through the floor line and extends upward as a waste or vent pipe. Below the floor, an 1/8 cast iron bend directs the piping to a horizontal waste line featuring an 1/8 bend at the end of the line.
& SCREW WASTE OR VENT CLEANOUT AT END OF LINE. LENGTH TO SUIT. 1/8 BEND IF CLEANOUT OCCURS WASTE LINE CAST IRON WASTE LINE. 1/8 CAST IRON BEND FLOOR LINE PLUGGED TEE W/ WALL MAY EXTEND AS A CHROME WALLCOVER
