The drip pan is fabricated with a depth of two inches and a width six inches greater than the diameter of the associated pipe. It is suspended independently beneath the plumbing piping using one-quarter-inch diameter galvanized threaded rods featuring double nuts on the bottom spaced at four feet on center. One-quarter-inch by two-inch wide galvanized bar stock is welded to the drip pan, maintaining a construction free of holes. The plumbing pipe is installed independently suspended from the drip pan assembly.

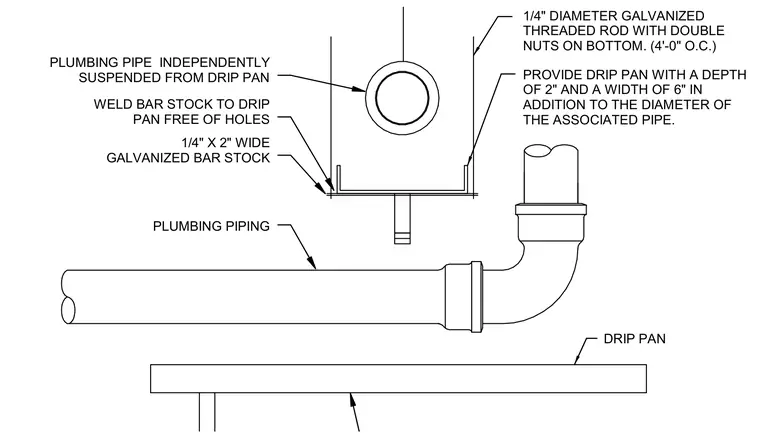

PROVIDE DRIP PAN WITH A DEPTH OF 2" AND A WIDTH OF 6" IN ADDITION TO THE DIAMETER OF THE ASSOCIATED PIPE. PLUMBING PIPING DRIP PAN 1/4" DIAMETER GALVANIZED THREADED ROD WITH DOUBLE NUTS ON BOTTOM. (4'-0" O.C.) 1/4" X 2" WIDE GALVANIZED BAR STOCK WELD BAR STOCK TO DRIP PAN FREE OF HOLES PLUMBING PIPE INDEPENDENTLY SUSPENDED FROM DRIP PAN
