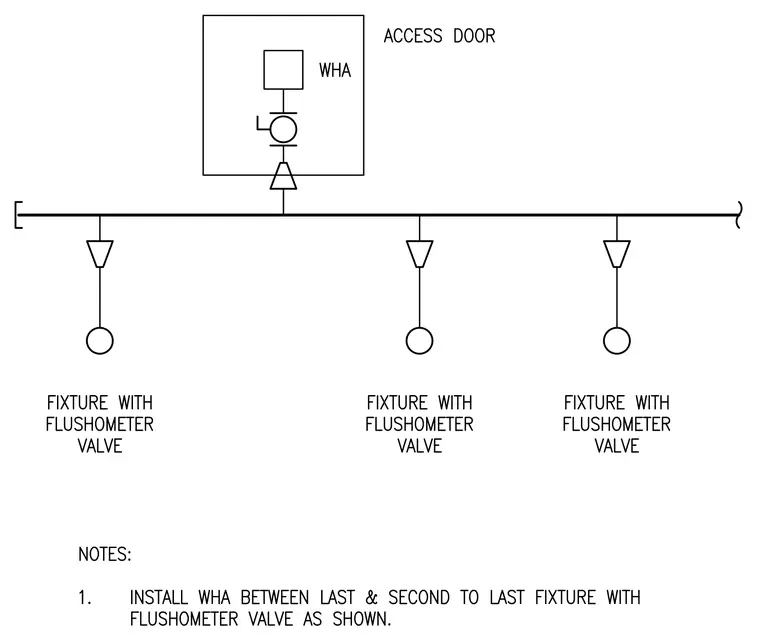

A water hammer arrestor is connected to the plumbing main between the last and second to last fixture with flushometer valve. An access door provides service entry to the water hammer arrestor and associated valve assembly. Each fixture branch connects to the main line with a dedicated valve.
