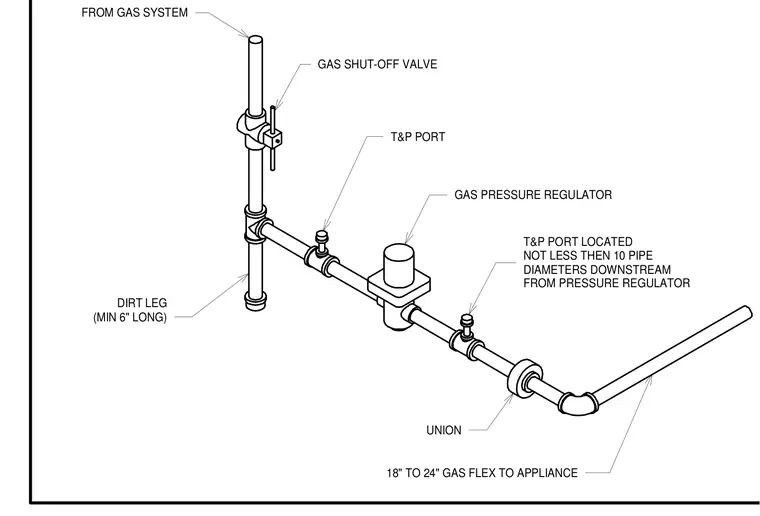

The gas distribution piping includes a main supply line feeding into a gas shut-off valve and a dirt leg with a minimum length of six inches. A gas pressure regulator is installed in the line, followed downstream by a temperature and pressure test port located not less than ten pipe diameters away. An additional test port sits upstream of the regulator, and a union connects the line to an eighteen to twenty-four inch gas flex connector leading to the appliance.
18" TO 24" GAS FLEX TO APPLIANCE UNION T&P PORT LOCATED NOT LESS THEN 10 PIPE DIAMETERS DOWNSTREAM FROM PRESSURE REGULATOR GAS PRESSURE REGULATOR T&P PORT DIRT LEG (MIN 6" LONG) GAS SHUT-OFF VALVE FROM GAS SYSTEM
