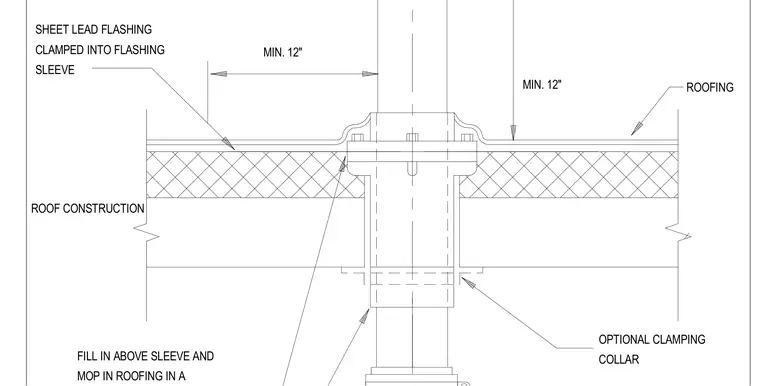

A pipe sleeve penetrates the roof construction, secured with an optional clamping collar below and a sleeve clamped into the sheet lead flashing above. Roofing is mopped in over the assembly, maintaining a minimum twelve-inch clearance. The lead flashing is shaped over the sleeve flange to provide a waterproof seal at the roof surface.
MOP IN ROOFING IN A FILL IN ABOVE SLEEVE AND SLEEVE CLAMPED INTO FLASHING SHEET LEAD FLASHING COLLAR OPTIONAL CLAMPING ROOFING ROOF CONSTRUCTION MIN. 12" MIN. 12"
