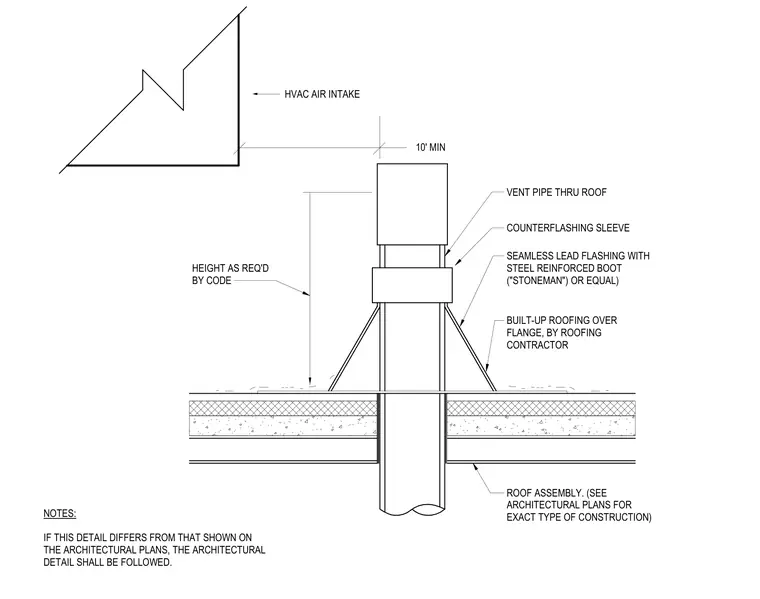

A vent pipe penetrates a roof assembly with a height required by code and maintains a ten-foot minimum separation from HVAC air intakes. The penetration is sealed with a seamless lead flashing featuring a steel-reinforced boot or equal, with built-up roofing installed over the flange by the roofing contractor. A counterflashing sleeve covers the upper joint of the vent pipe assembly.
VENT PIPE THRU ROOF COUNTERFLASHING SLEEVE SEAMLESS LEAD FLASHING WITH STEEL REINFORCED BOOT ("STONEMAN") OR EQUAL) BUILT-UP ROOFING OVER FLANGE, BY ROOFING CONTRACTOR ROOF ASSEMBLY. (SEE ARCHITECTURAL PLANS FOR EXACT TYPE OF CONSTRUCTION) HEIGHT AS REQ'D BY CODE HVAC AIR INTAKE 10' MIN NOTES: IF THIS DETAIL DIFFERS FROM THAT SHOWN ON THE ARCHITECTURAL PLANS, THE ARCHITECTURAL DETAIL SHALL BE FOLLOWED.
