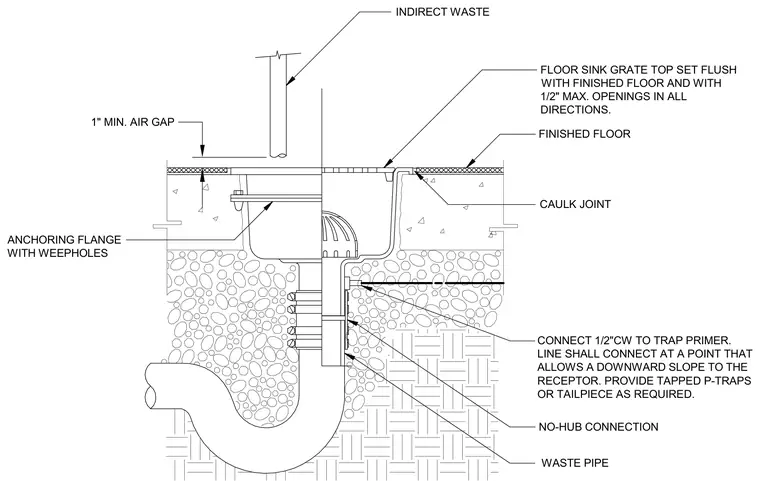

The floor sink grate top is set flush with the finished floor, maintaining maximum one-half-inch openings in all directions. An indirect waste line discharges above the receptor with a one-inch minimum air gap. The receptor includes an anchoring flange with weepholes and is sealed to the surrounding construction with a caulk joint. A waste pipe connects below via a no-hub connection, and a one-half-inch cold water line supplies the trap primer.
FLOOR SINK GRATE TOP SET FLUSH WITH FINISHED FLOOR AND WITH 1/2" MAX. OPENINGS IN ALL DIRECTIONS. FINISHED FLOOR CONNECT 1/2"CW TO TRAP PRIMER. NO-HUB CONNECTION WASTE PIPE CAULK JOINT INDIRECT WASTE 1" MIN. AIR GAP ANCHORING FLANGE WITH WEEPHOLES LINE SHALL CONNECT AT A POINT THAT ALLOWS A DOWNWARD SLOPE TO THE RECEPTOR. PROVIDE TAPPED P-TRAPS OR TAILPIECE AS REQUIRED.
