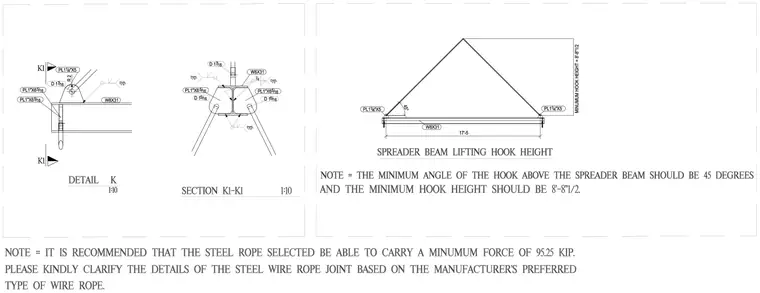

A lifting hook assembly is constructed from a W8X31 steel beam with welded plate connections. The rigging utilizes steel wire rope connected through plates with a minimum hook height of 8 feet 8 and one-half inches and a minimum angle of forty-five degrees above the spreader beam. The design specifies a minimum wire rope force capacity of 95.25 kips with joints determined by the manufacturer's preferred type.
