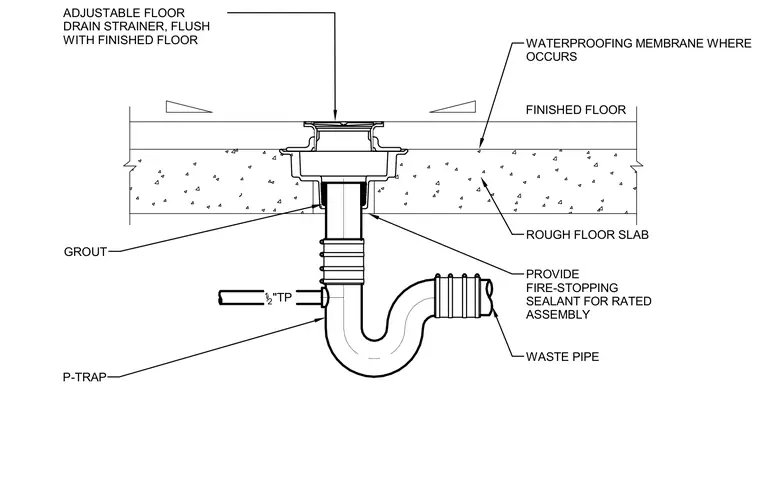

An adjustable floor drain strainer sits flush with the finished floor over a rough floor slab. A waterproofing membrane is installed where required beneath the finish. The drain body connects to a waste pipe fitted with a P-trap, and a half-inch primer connection is provided. Grout fills the surrounding void, and fire-stopping sealant is applied at the penetration for rated assemblies.
FINISHED FLOOR P-TRAP 1/2 "TP GROUT PROVIDE FIRE-STOPPING SEALANT FOR RATED ASSEMBLY WASTE PIPE ADJUSTABLE FLOOR DRAIN STRAINER, FLUSH WITH FINISHED FLOOR WATERPROOFING MEMBRANE WHERE OCCURS ROUGH FLOOR SLAB
