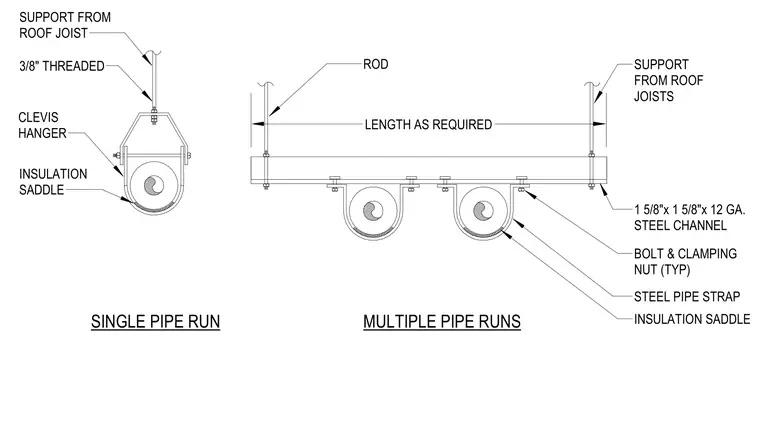

The suspended pipe support assembly hangs from the overhead roof joists using three-eighth-inch threaded rods. Single pipe runs utilize a clevis hanger fitted with an insulation saddle. Multiple pipe runs are supported by a one and five-eighths by one and five-eighths inch twelve-gauge steel channel secured by bolts and clamping nuts, with steel pipe straps and insulation saddles holding individual pipes.
SUPPORT FROM ROOF JOISTS SUPPORT FROM ROOF JOIST INSULATION SADDLE CLEVIS HANGER 3/8" THREADED 1 5/8"x 1 5/8"x 12 GA. STEEL CHANNEL BOLT & CLAMPING NUT (TYP) ROD LENGTH AS REQUIRED STEEL PIPE STRAP INSULATION SADDLE MULTIPLE PIPE RUNS SINGLE PIPE RUN
