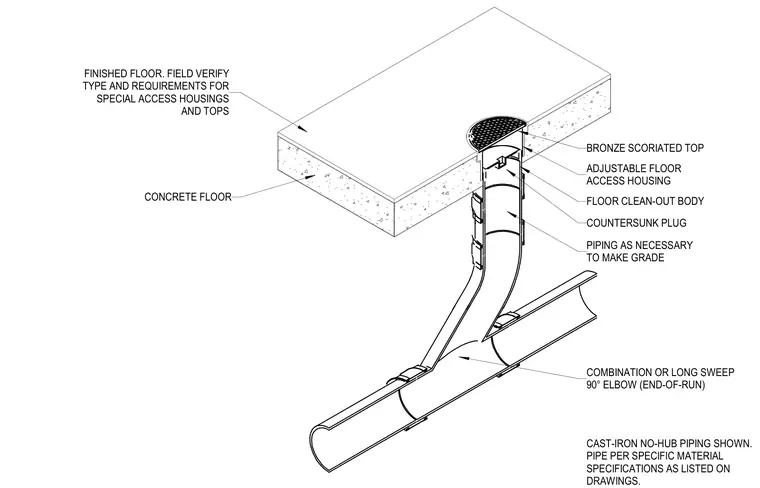

An adjustable floor access housing with a bronze scoriated top flush with the finished floor is installed within a concrete floor slab, housing a countersunk plug inside a floor clean-out body. Piping connects the clean-out body to the main line using cast-iron no-hub piping and a combination or long sweep ninety-degree elbow at the end of the run. Field verification of special access housings and tops is required to match specific project conditions.
BRONZE SCORIATED TOP ADJUSTABLE FLOOR ACCESS HOUSING FLOOR CLEAN-OUT BODY COUNTERSUNK PLUG PIPING AS NECESSARY TO MAKE GRADE COMBINATION OR LONG SWEEP 90° ELBOW (END-OF-RUN) CAST-IRON NO-HUB PIPING SHOWN. PIPE PER SPECIFIC MATERIAL SPECIFICATIONS AS LISTED ON DRAWINGS. CONCRETE FLOOR FINISHED FLOOR. FIELD VERIFY TYPE AND REQUIREMENTS FOR SPECIAL ACCESS HOUSINGS AND TOPS
